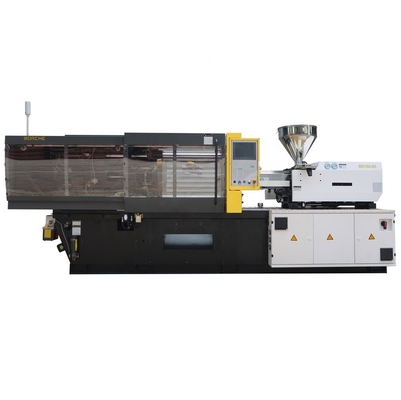

150Tons Borche BS150-III injection molding machine with good factory price for plastic socket
150Tons cookware bakelite handles molding injection machine Borche BS150-III
Auxiliary Fascia Console Mould Plastic Auto Parts Making Injection Molding Machine BS150-III
Plastic Auto Parts Injection Molding Machine BS150-III Borche Car Plastic Parts Making Machine
plastik mashina BS150-III Small Plastic Products Making Injection Molding Machine
BS150-III 150Ton Borche Plastic Auto Parts Making Machine
150Ton Servo Motor Injection Molding Machine China Famous Brand China Top 10 Injection Machine Factory Manufacturer
Small Plastic Parts Making Injection Molding Machine
Wiki Wang
Wechat: pewash
Whatsapp/Mobile Number: +8613738082939
BS-Ill Servo Series are featured with adequate power system, high-precision control, stable performance, high versatility and three sizes of screw barrel, which satisfies different production requirement.
Advanced Technique
Advanced technique realises high efficiency and energy saving demands
BS-Ill Servo Series adopt multi-pump control system, which cooperating with CAN BUS and running flexibly with real-time production demands, can produce small size plastic parts with a single pump and produce big size plastic parts with multi-pump. Lower energy consumption as well as higher-efficient productivity provides a competent and economical solution to satisfy customer requirements.
BS-Ill Servo Series are accredited as National First Grade Energy Saving and the best application only reach 60% of first grade consumption level. Compared with traditional hydraulic system, BS-Ill Servo Series can save 20%-80% energy. Servo motor proportionally delivers hydraulic oil based on actual needs, avoiding extra heating and temperature rise, ensures water saving.
Key Points
Machine is designed in accordance with ergonomics to enable human-oriented operation.
Integral optimism improves rigidness of machine structure.
Open space below clamping unit enables three direction product removal by belt conveyer..
Transparent front cover makes movement monitoring available.
Humanized design of more than 20 nameplates reminds operator keep safety in mind always.
Double-carriage cylinder is adopted to ensure stable injection.
High Versatility
BS-Ill Servo Series are featured with adequate power system, high-precision control. stable performance, high versatility and 3 sizes of screw barrel. which satisfies different production requirement.
Energy Efficiency
BS-Ill Servo Series are featured with adequate power system, high-precision control. stable performance, high versatility and 3 sizes of screw barrel. which satisfies different production requirement.
BS150-III 150Ton Servo Motor Injection Molding Machine Video: https://youtu.be/2h8MIpiuC2I
BS150-III 150Ton Borche Plastic Auto Parts Making Machine Main Technical Parameters
|
DESCRIPTION OF BS150-III 634/150 |
||
|
International Class NO. UNIT |
634/150 |
|
|
INJECTION UNIT |
||
|
Screw Diameter |
mm |
40 |
|
Shot Volume |
cm³ |
270 |
|
Shot Weight(PS) |
g |
254 |
|
Shot Weight(PS) |
OZ |
9 |
|
Injection Pressure |
MPa |
235 |
|
Screw L/D Ratio |
L/d |
23 |
|
Injection Stroke |
mm |
215 |
|
Screw Rotary Speed max |
rpm |
240 |
|
Nozzle Contact Force |
KN |
30 |
|
Nozzle Stroke |
mm |
250 |
|
CLAMPING UNIT |
|
|
|
Clamping Force |
KN |
1500 |
|
Opening Stroke |
mm |
410 |
|
Platen Size |
mm*mm |
670*670 |
|
Space btw. Tie Bars |
mm*mm |
460*460 |
|
Daylight max |
mm |
910 |
|
Mold Thickness(min-max) |
mm |
160-500 |
|
Ejection Stroke |
mm |
130 |
|
Ejector Force |
KN |
41.6 |
|
Ejector Pin |
unit |
4+1 |
|
POWER UNIT |
|
|
|
System Pressure |
Mpa |
17.5 |
|
Pump Motor |
KW |
15 |
|
Heating Capacity |
KW |
9.6 |
|
No. of Heater Zones |
unit |
5 |
|
GENERAL UNIT |
|
|
|
Oil Tank Capacity |
L |
230 |
|
Machine Dimensions |
m*m*m |
4.85*1.42*1.94 |
|
Machine Weight |
KG |
4300 |
Borche Servo Injection Molding Machine Models. A, B and C screws are option.
Injection Unit
Double-injection cylinder
Double-carriage cylinder
Nozzle purge cover
Linear guide rail
Three kinds screw as option for every machine
Nozzle contact force adjustment function
Nozzle central device
Barrel cover
Low-speed high-torque Hydraulic motor
RPM sensor (4 times / 1 round)
Removable hopper rail
Clamping Unit
Mould fixing designation referring Euromap 2
Robot mechanical interface referring Euromap 18
Ejection distribution referring Euromap 2
Big operation room for ejection
Anti-pitch slider (above BT150)
Clamp transducer connect directly to cross head of toggle
Central oil lubrication
Hydraulic Unit
Variable displacement pump
One set sets core puller
Oil temperature alarm
Oil level meter and oil temperature indicator
Low pressure clamping function
Quick-clamping
Mould height adjustment by gear mechanism
Back-pressure control function
Suckback
Pressure relief valve for carriage moving (below BT650)
Oil cooler
High-precision bypass filter (above BT480)
Fiter block alarm (above BT800)
Self-sealing filter (above BT800)
Nozzle moving function √
Electric and Control Part
KEBA controller
Language (Chinese and English)
Data lock and operation password
SPC quality management
Alarm and parameter resetting record
PID temperature control
Screw protection function
Support current/voltage analogue output
Clamping force auto-adjust
CAN interface
Injection 6 stage/pressure holding 5 stage/charge 5 stage
Mold clamp/open 5 stage /ejection 2 stage
