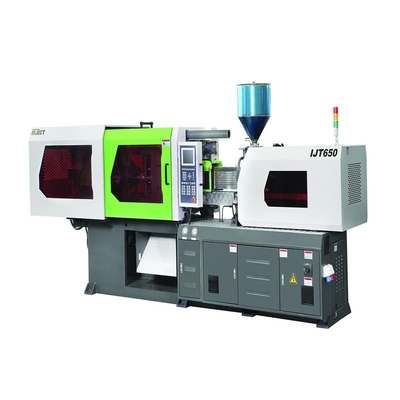

Item:Greenst IJT-650SD opening stroke900mm
INJECT standard injection molding machine
Technical Data
IJT-650 |
|||||
Injection Unit |
|||||
Screw Diameter |
mm |
80 |
90 |
100 |
110 |
Screw L/D Ratio |
L/D |
24.8 |
22 |
19.8 |
18 |
Shot Volume |
cm³ |
2226 |
2818 |
3479 |
4209 |
Injection Weight(PS) |
g |
2004 |
2536 |
3131 |
3788 |
Injection Pressure |
Mpa |
196 |
154 |
125 |
103 |
Injection Rate |
cm³/s |
473 |
600 |
740 |
895 |
Plasticizing Capacity |
g/s |
68.8 |
94.9 |
124.3 |
159 |
Screw Speed |
rpm |
0-120 |
|||
Clamping Unit |
|||||
Clamping Tonnage |
KN |
6500 |
|||
Toggle Stroke |
mm |
900 |
|||
Space Between Tie-bars |
mm |
910x910 |
|||
Max. Mold Height |
mm |
900 |
|||
Min. Mold Height |
mm |
400 |
|||
Ejector Stroke |
mm |
260 |
|||
Ejector Tonnage |
KN |
175 |
|||
Ejector Number |
Piece |
17 |
|||
Others |
|||||
Max. Pump Pressure |
Mpa |
14 |
|||
Motor Power |
KW |
37+22 |
|||
Heater Power |
KW |
46 |
|||
Machine Dimension |
m |
10x2.2x2.8 |
|||
Machine Weight |
ton |
36 |
|||
Oil Tank Capacity |
L |
1480 |
INJECT Introduction:
Ningbo Greenst Machinery Co., Ltd is a professional manufacture of plastic injection molding machine ranging from 50tons to 1600tons of mould locking force(50g to 10000g of injection weight), which are mainly for foreign customers and domestic middle and high-end customers. Using new technology and good units, we make machine with C N C high-precision machine, assemble them under ISO quality process. We supply quality machines and turnkey project. We can make energy saving series machines, high speed machines, P E T bottle machines, P V C fitting machines, also give high- quality mold, auxiliary equipment and in–mold-labeling for bucket, cup, and bowl and so on. Our products are sold all over the world. Now we are looking for agent, sales and service team, we warmly welcome you to join us!
INJECT Products:
♦ Servo power saving machine
♦ Standard injection molding machine
♦ Variable pump machine
♦ High speed injection Molding Machine
♦ PET injction machine
♦ PVC injction machine thanks for visit
INJECT Description: pp cosmetic plastic box injection moulding machine from GREENST
INJECT Exihibition:
Saudi 4P from 17 - 20 February 2014 welcome to visit ictures
Certificates
Q: Where have you exported your machines?
A: We have already exported to more than 30 countries in Asia,Middle east ,Africa, South Kerea and Etc.
Q:Can you arrange the visit to your machine user?
A: Yes.
Q:Can you customize the machine according to our requirement ?
A: Yes.
Q:How about your after-sales service?
A:We will reply you within 24 hours by email or phone . If we have local agent ,we will ask them to your site asap to fix problems .
Q:How about staff training ?
A:Usually ,we will train your staff during the machine installation on your site . you are also welcomed to send your staff trained in our factory .
