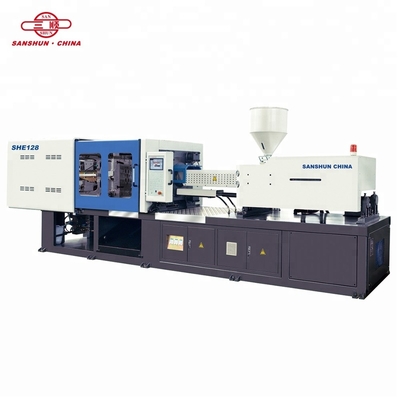

Mini Size SHE128ton Horizontal Plastic Spoons Forks Injection Molding Machine With CE Certificate

1 Set
MOQ
Mini Size SHE128ton Horizontal Plastic Spoons Forks Injection Molding Machine With CE Certificate
풍모 갤러리 제품 설명 따옴표를 요구하십시오
풍모
제품 사양
Condition: New
Style: Horizontal
Clamping Force: 1280kn
Type: Injection molding machine
Place of Origin: Zhejiang, China
브랜드 이름: SANSHUN
Plastic Type: Thermoplastic
Automatic: Yes
After-sales Service Provided: Engineers available to service machinery overseas
Injection Weight: 230-252g
Injection Rate: 95-100g/s
Opening Stroke: 365mm
Power: 21.2kw
인증: CE
기본 정보
Place of Origin: Zhejiang, China
브랜드 이름: SANSHUN
인증: CE
결제 및 배송 조건
Packaging Details: Standard Export Package
Supply Ability: 30 Set/Sets per Month
제품 설명
Product Description

SANSHUN Machinery is one of the top 10 Chinese injection moulding machinery manufacturer. We are manufacturing different types of injection moulding machines and range starts from 32 Ton to 2000 Ton. During the past 20 years, our machines had been exported to more than 60 countries.
Characteristics
Sanshun Fix Pump equipped Plastic Injection Molding Machines A fixed-displacement pump has a set flow rate - every stroke of the motor moves the same amount of fluid. The simplest type of fixed-displacement pump is the gear pump, in which the hydraulic fluid is pushed by rotating gears. In some models, the gears are sequential; in the quieter and more efficient version, the gears are interlocking. Another common variation is the screw pump, which uses the classic Archimedes screw, which looks much like a drill bit, to move the fluid. They have the advantage of providing a high rate of flow at relatively low pressures. Fixed pump system provides stable output, quick response, powerful strength. The hydraulic oil flow design applied modular block technology for rapid oil transfer and dynamic system response
Advantages
Energy saving, environmental, low noise, quick response, high-efficiency, Shorter Cycle Time, Improve Production efficiency

Details

Platen Dimension >>

Technical Parameters >>

MODEL
SHE128
INJECTION UNIT

A
B
Screw diameter
mm
38
40
Shot size(theoretical)
Cm³
256
280
Shot weight
g
230
252
Injection pressure
Mpa
176
160
Injection rate
g/s
95
100
Screw L/D ratio
L/D
23.4
22.2
Screw speed
r.p.m
0-190
Nozzle Diameter
Srmm
10
CLAMPING Unit
Clamp tonnage
KN
1280
Toggle stroke
mm
365
Mould Thickness
mm
150-420
Space between tie-bars
mm
428X386
Ejector stroke
mm
140
Ejector tonnage
KN
50
Ejector number
Piece
5
Hole Diameter
mm
100
OTHERS
Heat power
KW
9.8
Max. pump pressure
MPa
16
Pump motor power
KW
13
Valve Size
mm
10
Machine dimension
m
4.8X1.6X1.7
Machine weight
t
4.2
Oil tank capacity
L
220

- No extra energy consumption due to output volume changes according to the load, servo motor don' t work during cooling stage 0 consumption.
- Comparing with traditional injection moulding machine can save electricity 40- 80%.
- Pressure responses fast, quickly starts up to 0.05s.
- Compared to traditional injection molding machine the control system to respond will be 2-3 times faster.
- High response speed, shorten cycle times, improve production effi ciency.
- Products repeat accuracy can be increased to more than 5 thousandths, fully able to meet the requirements of ultra-precision injection molding.

Application

Injection Molding Machines widely used in Automotive, Packaging, Electrical, Medical, Household and Appliance sectors. In particular, increasing demand in emerging economies fueled the growth of the injection molding machine market.
